Wallbox

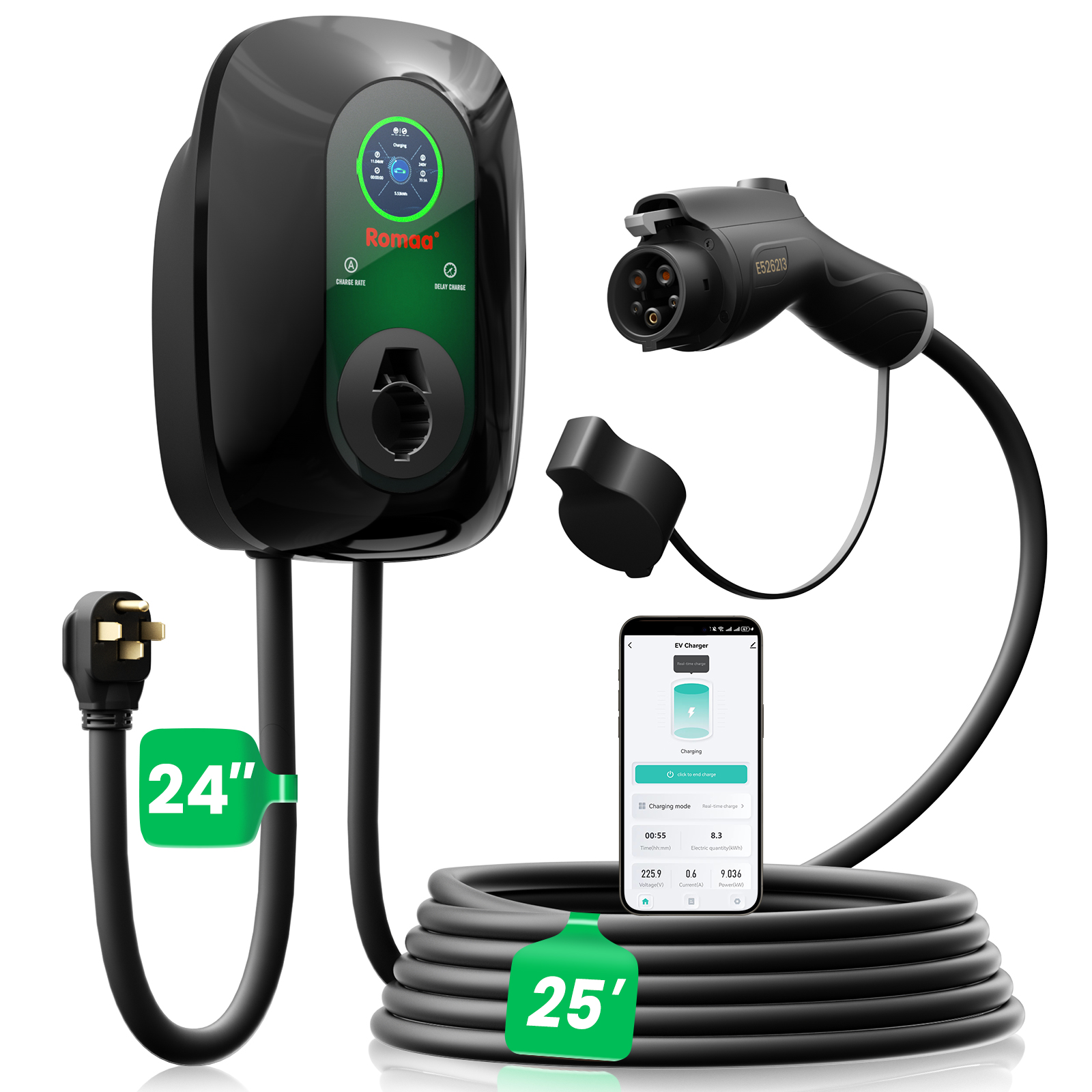

11kW Wall-mounted EV Charger
Designed for residential and business use, these ev chargers can be installed in garages or on outdoor walls to provide overnight or long-term parking charging for electric vehicles


Buy Now

Advantages

  • Cost-Effectiveness
  • Customization
  • Auto-Shutdown

Features

  • Easy Installation
  • Diverse Designs
  • Smart Control

Convenience

Charging at home eliminates the hassle
of finding public charging stations

Save money

Compared to public charging stations, home
chargers are more cost-effective in the long run

Customization

Users can adjust the current/voltage and
charging time to meet their needs

Smart Monitoring

Allows users to set and check the charging
status via app

Specifications

  • Input/Output Power 11.5 kW (240V AC*48A) if hardwired; 9.6 kW (240V AC*40A) default with NEMA 14-50 plug
  • Adjustable Сurrent 8-48 A (via app). Amperage can be adjusted via APP and manually
  • Operating Voltage 240 Vac±15%
  • Protection Degree TYPE 4
  • Protection Types Overcurrent, Current Leakage, Overvoltage, Undervoltage, Overheat, Ground, and more
  • Charging Method Quick start/APP Start
  • Output Cable 25 ft Extra Long
  • Connector Type SAE J1772 - compatible with all EVs / PHEVs in NA (Tesla requires an adapter)
  • Operating Temperature -22°F to 122°F (-30°C to 50°C)
  • Guaranteed 2 years
